Gannomat

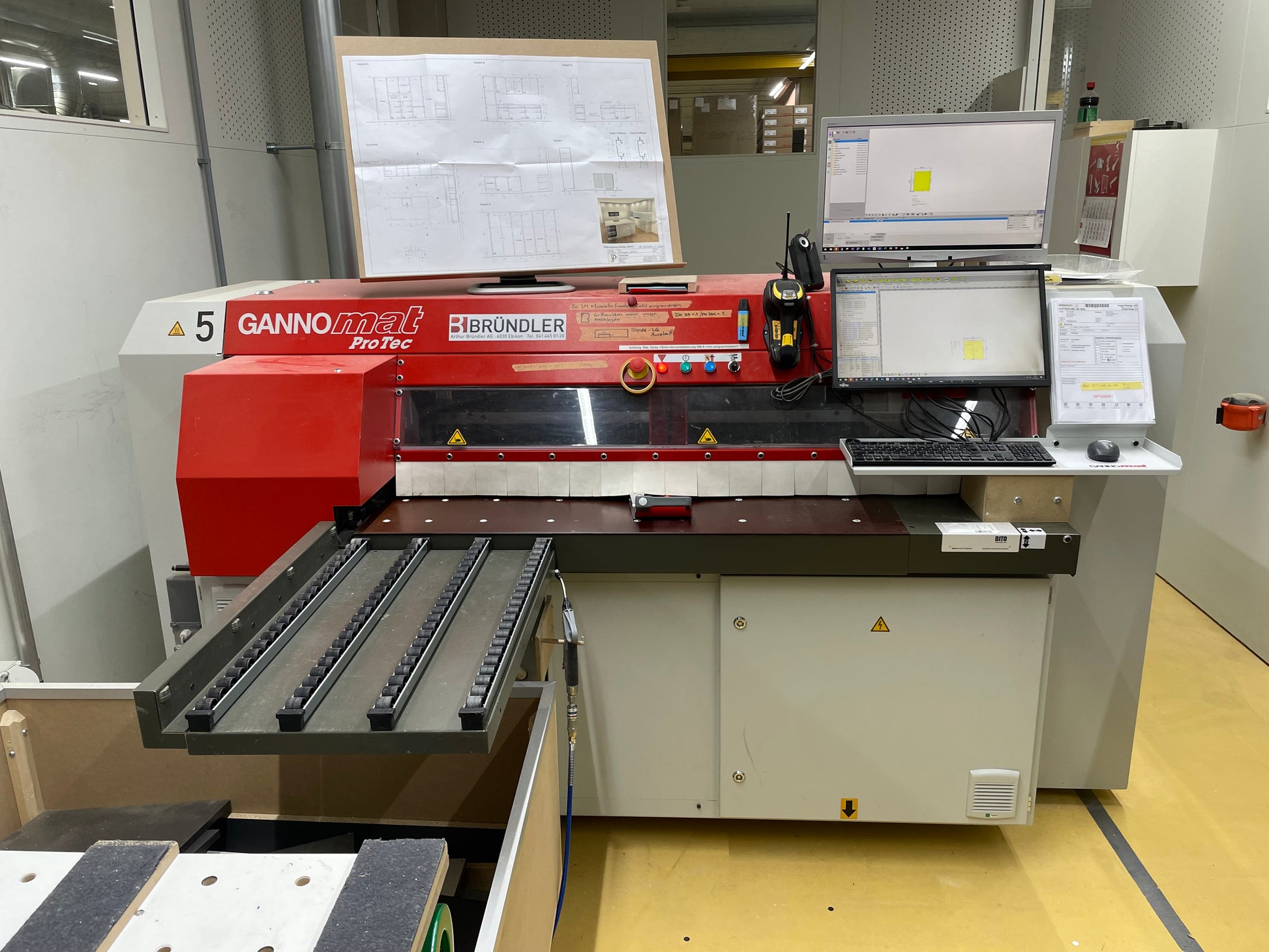

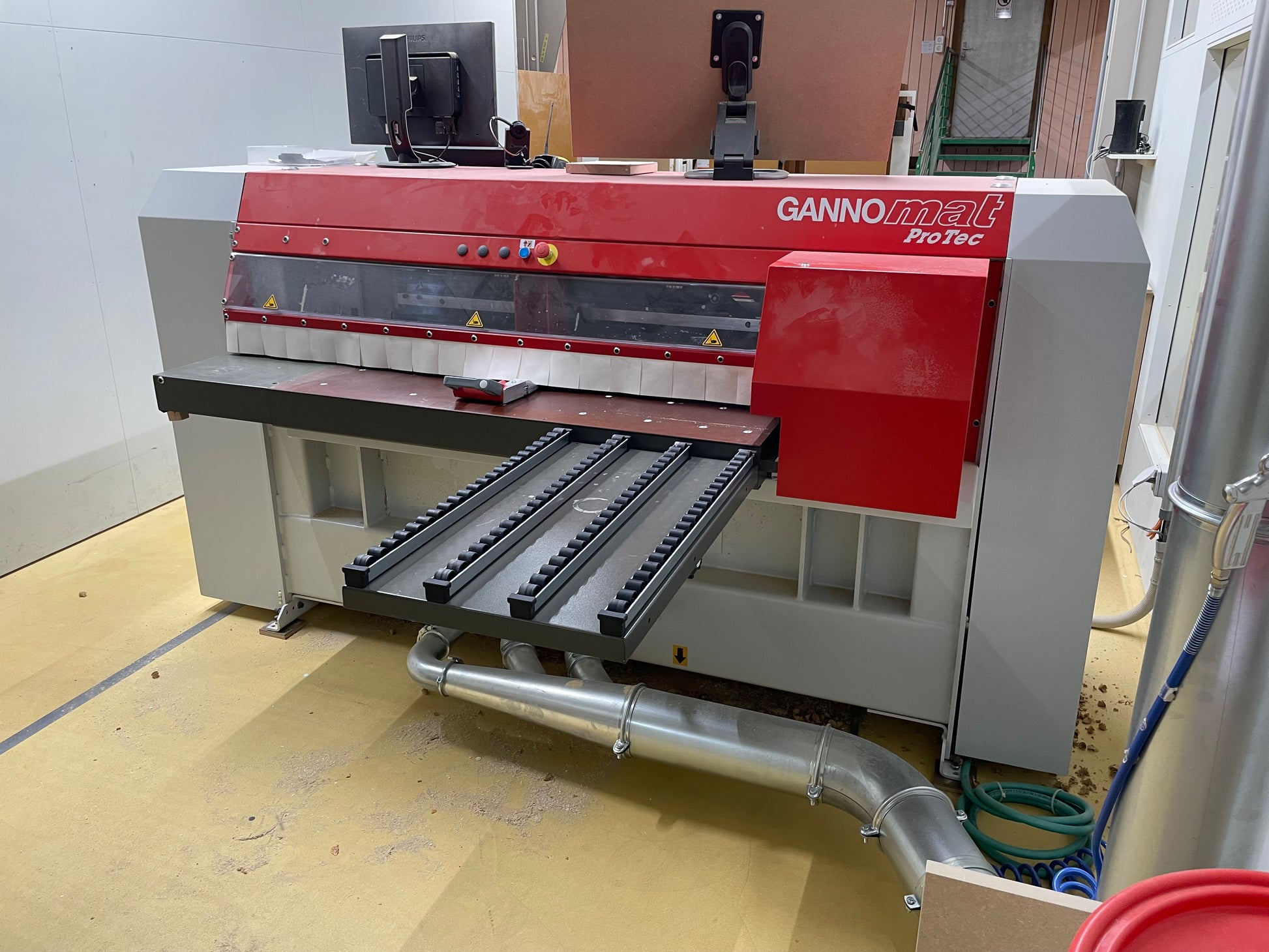

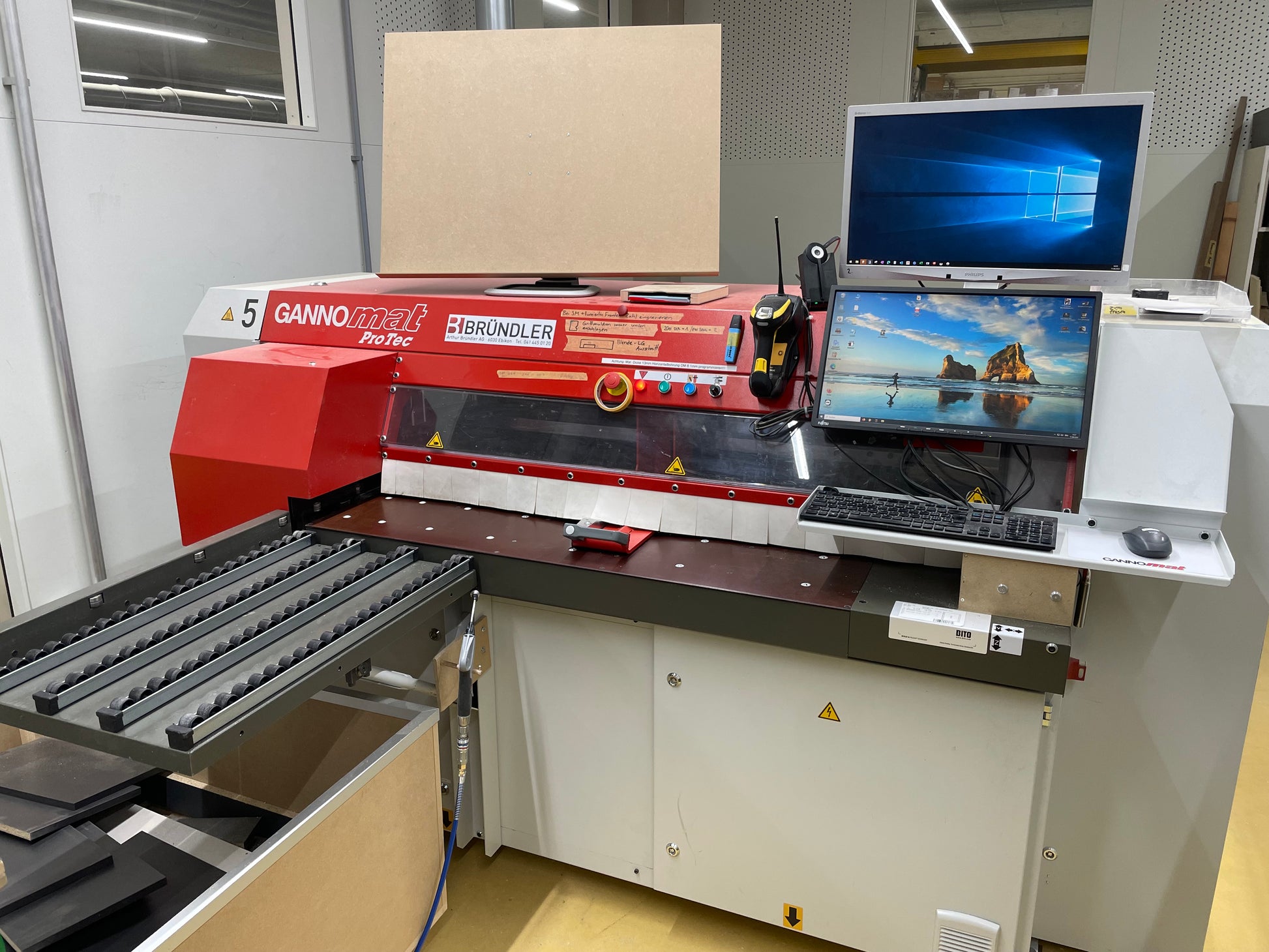

Product description: Gannomat ProTec

General technical data

Maximum length:

• ProTec 1300: 2540mm / 2665mm - ER32/HSK63F

Maximum depth: 1484 mm
Maximum height: 1409 mm
Working height: 915 mm

Motor – drilling and grooving saw drive: 1.5 kW

Speed – Drill spindles:

• 3,095 rpm - 50 Hz
• 3,710 rpm - 60 Hz

Speed – drilling spindles (speed control): 2,000 rpm to 6,000 rpm (option)

Speed – Grooving saw:

• 3,975 rpm - 50 Hz
• 4,770 rpm - 60 Hz

Speed – grooving saw (speed control): 2,600 rpm to 7,200 rpm (option)

Motor – Milling unit Profit (option): 4.5 kW

Speed of milling unit Profit (option): 4,000 - 18,000 rpm

Motor – milling unit Profit HSK63F: 5.5 kW

Speed of milling unit Profit HSK63F: 1,000 - 20,000 rpm

Sound power level according to EN ISO 3746:1996: 99.2 dB
Emission sound pressure level according to EN ISO 11202:2009: 85.8 dB

Extraction diameter: 3x Ø80 mm (option: 1x Ø160 mm)
Extraction volume: 2,170 m³/h
Extraction air speed: 30 m/s
Suction negative pressure: 2500 Pa

Weight:

• ProTec 1300: 1,850 kg

compressed air consumption:

• Average value for drilling, grooving, milling: 300 L/min
• Average value for pure milling: 500 L/min

Compressed air connection: 7-8 bar
Compressed air supply line: min. inner diameter 13 mm
